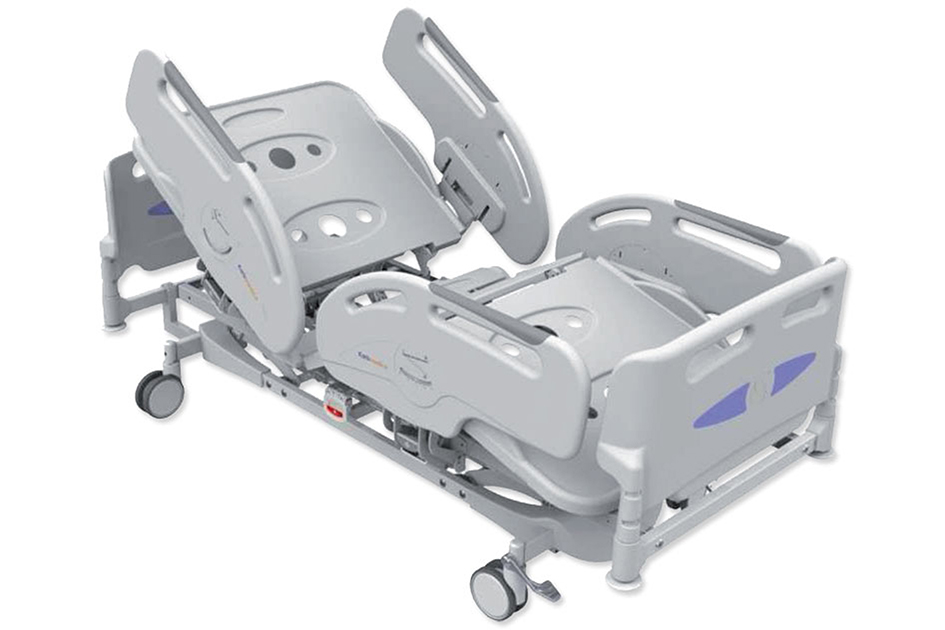

電動醫院護理床

Electronic Hospital Bad

Features :

3 joint, 4 section Hospital bed, with electronic adjustment of height and platform, trendelenburg and Reverse trendelenburg positions (15°).

All steel components are epoxy-coated. Back section regulation using electric actuators with anti-crushing and rototranslation function to avoid abdominal crushing.

Both bed sides have CPR manual levers for emergency manoeuvres.

Foot rest adjustment by click mechanisms allowing 6 positions.

Remote control to maintain position or disable.

The keypad allows adjustment of backrest, bed surface height, legs and foot rest, comfort position, Trendel and reverse Trendel.

- Compartments for patient lift bar and IV probe

- 4 containing sector side rails, made in technopolymer, and single collapsible

- Moulded removable head and foot boards with integrated handle useful for movements

- 4 castors Ø 150 mm with central brake system with directional control

- Size: 110 x 225 x h 91 cm

- Bed weight 130 kg

Technical Specifications :

1.          Minimum/maximum height surface: 380-780 mm;

2.          Maximum backrest regulation: 71°;

3.          Maximum leg/foot height regulation: 30°;

4.          Trendelenburg/reverse trendelenburg: 15°;

5.          Minimum/maximum height: 835-1245 mm;

6.          Maximum total width/length: 1010/2260 mm (bumpers and siderails included);

7.          Worksurface width/lenght dimension 880/2000 mm;

8.          Power supply: 160-230 V - 50-60 Hz;

9.          SWL: 270 kg;

10.      IEC protection class: I / B;

11.      IP (protection rating): IP66

12.      Made in EU.
